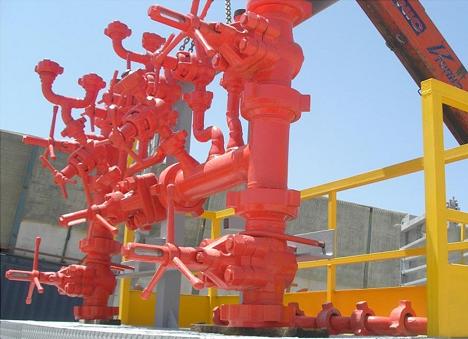

High Pressure  Pipe Manifold


 Double 6” SCH XXS stand pipe manifold to
connect to dual stand pipe.
 One (1) dual stand pipe, 6” XXS lines mounted in
the mast complete with 6” XXS 160° gooseneck
with caped top outlet and but welded hammer
union connections.

High pressure lines

 Double 6” XXS substructure lines from stand
pipe manifold to ground manifold. Complete
with hammer unions at break points, elbows
as required and heavy duty clamps for

Ground Manifold

 One 6” SCH XXS ground manifold to
connect three mud pump discharge lines to
two high pressure substructure lines
connecting to the stand pipe manifold.
